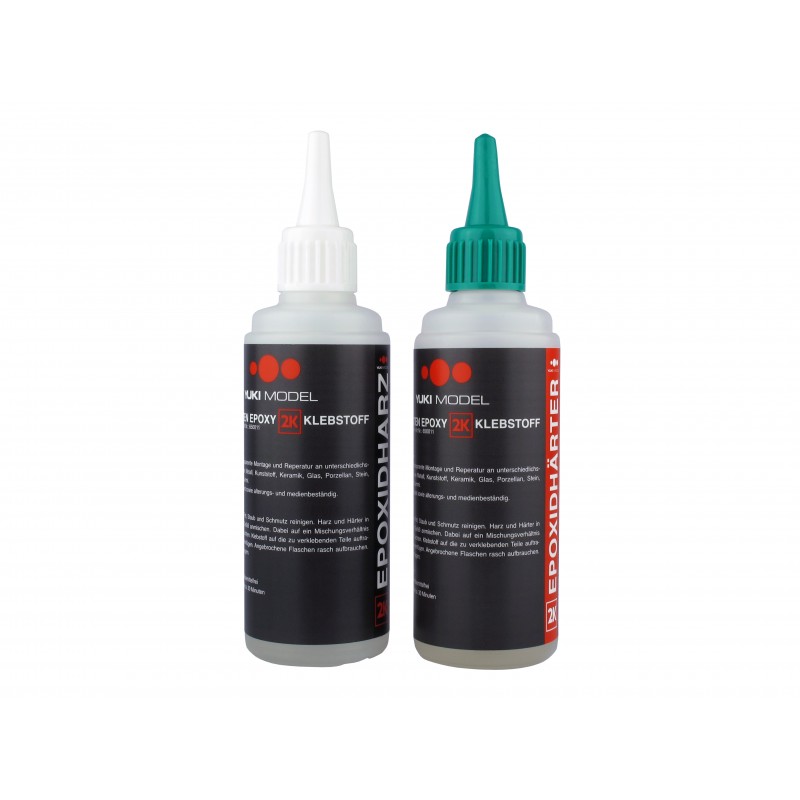

Epoxylim 30 minuters 200g (lim 100g, härdare 100g)
149,00 kr
Inkl. moms
The 30-minute epoxy is a 2-component epoxy resin adhesive. Resin and hardener are bottled each 100 g, which equals in a total of 200 g epoxy. The adhesive is transparent, solvent-free and its processing time is approximately half an hour. It is suitable for universal installation and repair of different materials such as metal, plastic, ceramic, glass, porcelain, stone, wood, concrete and rubber. There is a sustained resistance to water, petrol and oil. The temperature resistance is up to +120 ° C.
Försäljningsvillkor
Betalning, leverans, garanti, ångerrätt, reklamation m m
Frakt
Enhetsfrakt från 89 kr
Integritetspolicy
Hur vi hanterar dina uppgifter
Physical properties (in liquid state)
Colour (mixed):
clear/colourless
Viscosity (mixed) @ +25 °C:
15.000-20.000 mPa-s
Mixing ratio:
1:1
Processing time:
approx. 30 min
Curing time:
approx. 2-3 h
Specific weight:
1,1 g/cm³
Solids content:
100 %
Temperature resistance:
-40 °C to +120 °C
Physical properties (in solid state)
Shore hardness:
78-80 (ASTM D 2240)
Tensile shear strength:
18-24 N/mm² (DIN 53283)
Shear strength:
3-5 N/mm² (ISO 4578)
Thermal conductivity:
0,1 (W/mk)
Coefficient of thermal expansion:
60-120 x 10 E^6 (1/k)
Dielectric strength:
50-90 (kv/mm)
Volume resistivity:
3-5 x 10 E^12 (Ohm/cm)
Chemical properties
Chemical resistance:
The chemical resistance was tested using an aluminum-aluminum compound after 7 days of curing at +25 °C, dipping it in the substances listed below and checked for tensile shear strength.
Tensile shear strength (impact after 7 days of immersion in different fabrics)
Gasoline:
17 N/mm²
Acetic acid (10 %):
15 N/mm²
Xylene:
15 N/mm²
Lubricating oil (HD30):
17 N/mm²
Paraffin:
16 N/mm²
Water (23 °C):
16 N/mm²
Water (90 °C):
16 N/mm²
Processing
Preparation:
Die zu verklebenden Oberflächen sollten vorher mit einem für das jeweilige Material geeigneten Reiniger von Staub, Öl, Fett und anderen Verschmutzungen befreit werden.
Application:
Nach dem Mischen sollte der Klebstoff sofort auf die zu verklebenden Oberflächen aufgetragen werden. Eckverbindungen sollten gestützt werden. Bei einer Klebstoffdicke von 0,13 mm entwickelt sich die maximale Klebekraft.
Storage and durability
Storage:
Lagerung und Transport bei Temperaturen über +38 °C und bei Frost sind unbedingt zu vermeiden.
Durability:
Die Haltbarkeit im ungeöffneten Behälter beträgt 12 Monate. Dies setzt eine Lagerung zwischen +13 °C und +27 °C voraus. Die Haltbarkeit kann durch Lagerung zwischen +10 °C und +18 °C verlängert werden.
